Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC

Name: Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit 8 Input 6 Relay Output 24VDC
Brand: Siemens
Price: 1 USD

Best Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC wholesale

Brand Name : Siemens

Model Number : AFP0RC14CRS

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 2-3 days

Product Name : PLC Industrial Control

Part Number : AFP0RC14CRS

Shipment : DHL

Condition : New

Lead Time : 2-3 days

WQR12038HBL : 1 year

Keywords : AFP0RC14CRS

Contact Now

Sinamics AFP0RC14CRS Overview

The AFP0RC14CRS is a compact, high‑performance PLC CPU unit from Panasonic’s FP0R series. Designed for industrial automation, it features 14 integrated I/O points (8 sink/source inputs, 6 relay outputs) and a 16 k step program memory. Equipped with RS‑232C and Mini USB ports for easy programming and communication, it supports high‑speed counters, 4‑axis pulse output, and RUN‑mode program editing to minimize downtime.

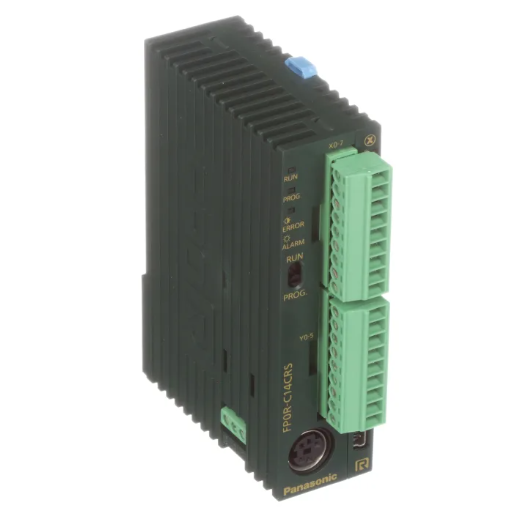

Figure 1 shows the front panel of AFP0RC14CRS.

Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC

Quick Specs.

Table 1 shows the Quick Specs

Item	Details
Part Number	AFP0RC14CRS
Brand	Panasonic
Series	FP0R
I/O Configuration	14 points (8 input, 6 relay output)
Supply Voltage	24 VDC
Program Memory	16 k steps
Communication	RS‑232C + Mini USB
Mounting	DIN rail
Certifications	CE, cULus

Detailed Specification

Parameter	Specification
General
Manufacturer	Panasonic
Product Type	PLC Control Unit
Series	FP0R‑C14CRS
I/O Total Points	14
Input Type	8 points, sink/source (PNP/NPN)
Output Type	6 points, relay
Output Current	2 A per point
Supply Voltage	24 VDC (operating range: 20.4–28.8 VDC)
Performance
Program Memory	16 k steps (EEPROM)
Scan Speed	Approx. 1 ms
High‑Speed Counter	8 points
Pulse Output	4‑axis, up to 50 kHz
Communication Ports	RS‑232C, Mini USB
Physical
Dimensions (W×H×D)	25 × 60 × 90 mm
Mounting	DIN rail
Terminals	Screw terminal block
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +70 °C
Humidity	10–95% RH (non‑condensing)
Protection & Features
Self‑Diagnosis	Yes
RUN Mode Editing	Yes
Password Protection	Yes
Battery‑Less Backup	Yes
Certifications	CE, cULus Listed

Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
